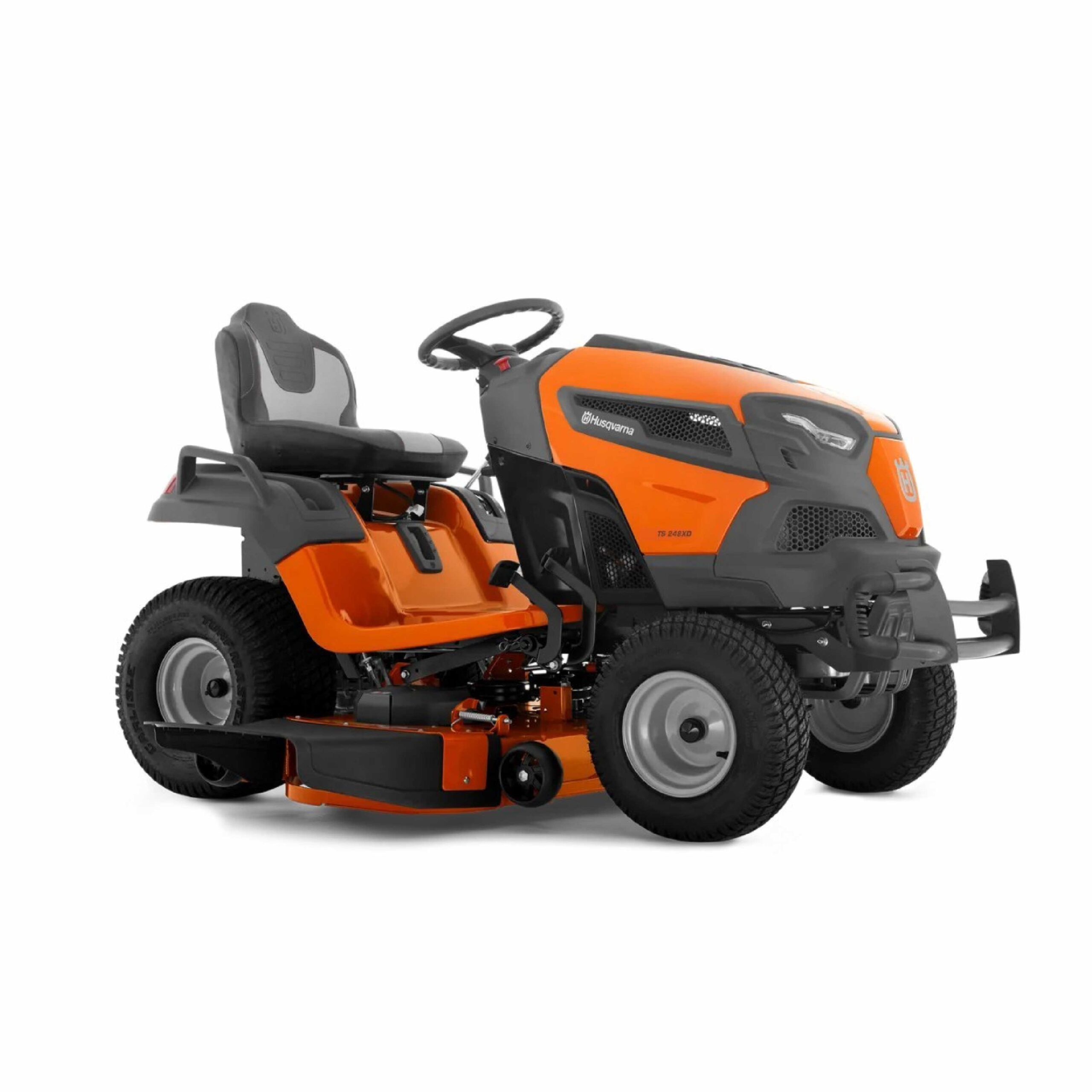

Husqvarna TS 248XD 48-Inch 23 HP V-Twin Gas Riding Lawn Mower

The Husqvarna TS248XD is a 48-inch riding lawn mower designed for efficient residential lawn maintenance. Powered by a 23 HP Kawasaki FR Series V-Twin engine, it combines dependable power with a wide cutting deck and a hydrostatic drive system.

In addition, the automatic locking differential helps improve traction when mowing challenging or uneven areas. As a result, the TS248XD provides a practical combination of cutting performance, control, and operator comfort.

Husqvarna TS 248XD Features and Benefits

The TS248XD combines a Kawasaki engine, 48-inch cutting system, and pedal-operated hydrostatic transmission. Therefore, it is well suited to homeowners who need efficient coverage across medium to large lawns.

Husqvarna TS2 48XD 23 HP Kawasaki V-Twin Engine

A Kawasaki FR Series V-Twin engine powers this riding mower. Specifically, the engine is rated at 23 HP for the TS248XD configuration referenced here.

Moreover, the two-cylinder engine uses an oil filter and air-cooling system. Consequently, regular maintenance can be performed according to the manufacturer’s recommended service schedule.

48-Inch Cutting Deck

The 48-inch cutting width allows the mower to cover a substantial area during each pass. Therefore, fewer passes may be required compared with narrower riding mowers.

In addition, the deck uses anti-scalp wheels to help the cutting system follow the lawn surface. This is particularly useful when mowing areas that are not completely level.

Husqvarna TS 248XD Hydrostatic Drive System

The mower uses a pedal-operated hydrostatic drive system. Instead of manually changing conventional transmission gears, the operator controls movement through the drive pedals.

As a result, changing speed and direction during routine mowing is straightforward. Furthermore, the system is paired with a Tuff Torq transmission.

Automatic Locking Differential

One of the notable features of the TS248XD is its automatic differential lock. When additional traction is required, the system is designed to help improve drive-wheel traction.

Consequently, this feature can be useful when operating on uneven terrain or in conditions where additional grip is required. Nevertheless, operators should always follow the manufacturer’s instructions for slopes and difficult terrain.

Husqvarna TS 248XD Cutting Performance

With its 48-inch cutting width, the mower provides efficient coverage for regular residential lawn care. Meanwhile, the three-blade cutting system provides coverage across the full deck width.

Additionally, four anti-scalp wheels help reduce unwanted deck contact with uneven sections of the lawn. Therefore, the cutting system combines wide coverage with features designed for consistent mowing.

Efficient Lawn Coverage

A wider deck can reduce the number of passes required on larger properties. For this reason, the 48-inch configuration offers a useful balance between mowing coverage and maneuverability.

Comfort and Operator Controls

Comfort becomes increasingly important during longer mowing sessions. Accordingly, Husqvarna equips the TS248XD with a high-back vinyl seat and an overmolded steering wheel.

Furthermore, the mower includes a digital hour meter with pre-programmed service intervals. This makes it easier to keep track of operating time and scheduled maintenance.

Pedal-Operated Control

The dual-pedal drive method allows the operator to control the hydrostatic transmission from the foot controls. As a result, the driver’s hands can remain focused on steering and mower operation.

Husqvarna TS 248XD Specifications

According to Husqvarna’s product support information and operator documentation, key specifications for the TS248XD include the following:

• Brand: Husqvarna
• Model: TS 248XD
• Product Type: Riding lawn mower / garden tractor
• Fuel Type: Gasoline
• Engine Manufacturer: Kawasaki
• Engine Series: FR Series
• Engine Type: V-Twin, 2-cylinder
• Engine Power: 23 HP
• Engine Displacement: 44.3 cu in
• Cutting Width: 48 in
• Number of Blades: 3
• Anti-Scalp Wheels: 4
• Transmission Type: Hydrostatic with automatic differential lock
• Transmission Brand: Tuff Torq
• Drive Method: Dual pedal operation
• Maximum Forward Speed: 5.5 mph
• Maximum Reverse Speed: 2.5 mph
• Fuel Tank Capacity: 4 US gal
• Starting System: 12V electric start
• Cooling System: Air cooled

Designed for Residential Lawn Maintenance

The combination of a 48-inch cutting width and 23 HP V-Twin engine makes this mower suitable for substantial residential mowing tasks. However, actual mowing performance depends on grass conditions, terrain, maintenance, and operating technique.

For example, wet or unusually tall grass may require slower mowing speeds. Similarly, uneven terrain requires additional attention to safe operation and cutting height.

Maintenance for Reliable Performance

Regular maintenance is important for long-term operation. First, inspect the mower before use and check the condition of the deck, blades, tires, and controls.

Next, follow the manufacturer’s service schedule for engine oil, filters, lubrication, and other maintenance items. Finally, keep the cutting deck reasonably clean and replace worn components when necessary.

• Read the operator’s manual before operating the mower.
• Check engine oil and fuel before use.
• Inspect blades and the cutting deck regularly.
• Maintain the tires according to manufacturer guidance.
• Follow the recommended engine service intervals.
• Use extra care on slopes and uneven terrain.
• Follow all manufacturer safety instructions.

Official Husqvarna TS 248XD Information

For manufacturer specifications, manuals, replacement parts, accessories, and service information, visit the official Husqvarna TS248XD support page.

Additionally, checking the exact product and serial number before ordering replacement parts is recommended because specifications can vary between production versions.

A Powerful 48-Inch Riding Mower

Overall, the Husqvarna TS 248XD combines Kawasaki V-Twin power, a 48-inch cutting system, hydrostatic operation, and an automatic locking differential. Therefore, it offers a practical solution for homeowners who need efficient lawn coverage with the comfort of a riding mower.
